Viva Composite Panel Pvt Ltd, Al Wukair, doha
ACP Sheet & Aluminium Composite Panel Supplier in Al Wukair, Doha
Building No 22, Zone 91, Street No 3117, Birkat Al Awamer, Al Wukair, doha
9167133770
55
Supplier Locator
Write ReviewsDrive Direction
Request a call back
Products
View all
Reviews
25-12-2024
25-12-2024
25-12-2024
27-05-2024
08-02-2024
Innovative Range and finishes in ACP product.
Excellent quality and services, stock availability..!
Videos
View all
Gallery
View all
About Brand

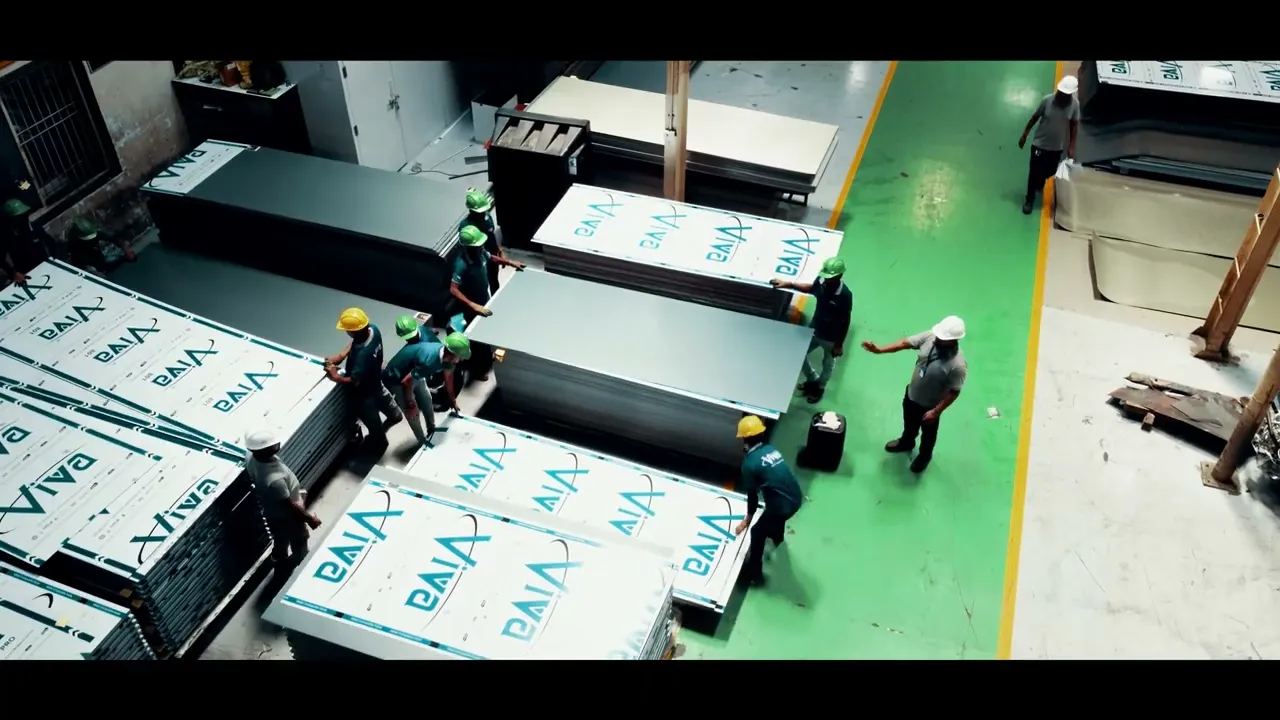

We define ourselves as one of the leading manufacturers and suppliers of high-quality Aluminium Composite Panel in India. Our journey started with a humble beginning long back in 2003 at Mumbai in Maharashtra and over the years the value we have contributed to the ACP sheet industry is synonymous with Trust and Reliability. Our cutting-edge ACP cladding manufacturing facilities at Umbergaon, Gujarat are equipped with world-class machineries and state-of-the-art equipment that enable us to create leading-edge products and deliver perfection to customers all across the country. We carry out our entire ACP panel manufacturing process in a smooth and streamlined manner leveraging state-of-the-art Korean machines and a skilled and enthusiastic workforce. What’s more? Our plant is equipped with all the safety measures and also features a solar power generator which generates 850 Kwh of power and results in smooth ACP sheet production. We also have in-house testing labs that comprise 100 different testing equipment to ensure superior quality production of ACP panels with precise specifications.
Payment Methods
Services
Tags
Frequently Asked Questions
Materials with B grade fire retardant properties are very difficult to ignite during a fire accident and hence exhibit excellent fire retardancy.
The AAMA 2605 PVDF coating is the industry standard.
Flexure strength, also known as modulus of rupture, bending strength or fracture strength, is a mechanical parameter for brittle material, is defined as a material’s ability to resist deformation under load.
The various tolerance of ACP are given below –
a. ACP Width – ± 2 mm.
b. ACP Length – ± 4 mm.
c. ACP Thickness – ±0.2 mm.
d. Coating thickness – ± 2 micron.
e. Coli thickness – ± 0.03 m
Following customized order make ACP –
a. ACP thickness – up to 10 mm.
b. Core type – Recycled/Virgin/mineral 70%/mineral 90%/3Dcorrugated core.
c. Core colour – White/black/Green etc.
d. Coating type – PE/SDPE/HDPE/PVDF/FEVE
e. Coating thickness – As per customer requirement (2 coat system ,3 coat sytem etc).
f. Aluminum alloy – 1100/3000/5000 series.
g. Coil thickness – 0.10/0.15/0.18/0.21/0.25/0.30/0.40/0.50/0.70 etc.
h. Surface protective film shelf life – 45/180 days.
i. Fire retardant – B1/A2/A2+
j. Fire rating – up to 2 Hrs.
1. AutoCAD drawing and 3 D view of site with desire colour.
2. Mock up sample.
3. Technical support to customer (product/ installation/ fabrication)
4. MTC of products.
5. Product warranty.
6. Product third party test reports.
7. Customized order. ( colour/thickness/size etc).
8. Quality assurance for every lot/ batch supply.
PPG, AkzoNobel, Spectrum, JSW,Berger Becker, Nippon & Monopol.
Some important terms related to ACP:
ACP : Aluminium Composite Panels.
ASTM: American Society for Testing and Materials.
AAMA: American Architectural Manufacturers Association.
LDPE : Low Density Polyethylene.
HDPE: High Density Polyethylene.
PVDF : Polyvinylidene fluoride.
PE : Polyethylene / polyester.
EN: – European standard.
BS: – British Standard.
FEVE: – Fluro ethylene vinyl ether (Fluro polymer bond)
SDPE: – Super durable polyester.
ISO: – International organization for standardization.
IS: – Indian standard.
LEED: – Leadership in energy and environment design.
DIN: – Dutch institute for international norming.
NFPA: – National fire protection association.
BOQ: – Budget of Quantity.
ACM: – Aluminum Composite Material
Long life, light weight, weather-proof, high impact resistance, chemical resistant, corrosion resistant, rigid, fast installation, low maintenance and less dead weight on the building structure.
The Pencil Hardness Test is used to measure the ‘Scratch Resistance’ of ACP pencil hardness of our ACP is F-H.
Yes, we have a coating plant in Gujarat that can supply customized colours provided the order exceeds 10000 square feet.
We use FEVE (Lumion)/ PVDF/ SDP based paint for exterior application and Polyester paint used for interior architecture (texture finish also).
Primarily, aluminium composite panel or ACP sheets meet the requirements of exterior applications like facade panels, column covers, display units, and canopies. They are a favourite construction material among builders and interior designers for trade show booths, hotels, shops, hospitals, corporate offices, apartments, villas, partitions, signage, machine coverage, pillar wraps, and false ceilings.
Our coil thickness ranges from 0.21mm to 0.70 mm for exterior grade & 0.10mm to 0.18mm for Interior grade like partition panels, Signage, metal laminate/bus bodies.
Due to their specially designed Nanotechnology-based coating, anti-scratch ACPs have a high gloss appearance and maximum scratch resistance against windstorms, earthquakes, cyclones, or abrasions. However, they are not 100% immune to scratches, marks and damage.
LEED Rating Systems encourages the use of eco-friendly materials that come from sustainable sources and are recycled. Hence, it emphasizes optimum management of construction waste with respect to the storage, collection and reuse of recyclable materials in addition to the collection and recycling of construction waste.
For 4 mm with coil thickness 0.5 mm
a. Normal, ACP – 6.0±5% kg/m2
b. FR B2, ACP – 6.8±5% Kg/m2.
c. FR B, ACP – 7.5±5% kg/m2
d. FR A2, ACP – 8.5±5% kg/m2
e. FR A2+ (3d, core) – 3.8±5% kg/m2.
The term “Specific Gravity” (SG) is used to define the weight or density of a liquid as compared to the density of an equal volume of water at a specified temperature. The Specific Gravity of Aluminium Composite Panel is measured by calculating the difference in weight while immersed in water & in air.
Yes, our company can supply B1, A2 & A2+ grade FR ACP in accordance with EN 13501, ASTM E 84 , NFPA 285& DIN 4102 standards. In fact, we are the first ACP Company in India to introduce Thomas Bell-Wright certified FR Class A2+ ACCP (Aluminium Core corrugated panel).
